A Complete Guide to Corrugated Flute Profiles and When to Use Each
When a manufacturer tells you a box is made from "E-flute" or "B-flute" corrugated board, they are describing the shape of the corrugated medium — the wavy layer sandwiched between the flat liner sheets. That wave profile controls nearly everything about how the board performs: its thickness, its cushioning ability, its printability, its crush resistance, and ultimately whether it is the right choice for your product.
Most buyers never ask about flute type and accept whatever the manufacturer suggests. This guide explains the four main flute profiles used in India — E, B, C, and BC double-wall — what each one is, why they behave differently, and which products and applications each one serves best. Understanding it takes ten minutes and puts you in a position to make a better specification decision on every corrugated order.
At a Glance
E-flute is thin, rigid, and excellent for printing — best for retail packaging, gifting boxes, and D2C mailers where print quality and compact profile matter most. B-flute is the standard shipping and protective flute — the best balance of cushioning, compression, and cost for most e-commerce and industrial applications. C-flute is stronger and thicker than B — used for heavier products and export cartons. BC double-wall (B+C layers combined) is the highest-strength corrugated board available in standard production formats, equivalent to what the Indian market calls "5-ply."
What is a flute profile and what does it actually do?
A corrugated board is made of three components: two flat outer liner sheets (top and bottom) and a corrugated medium — the wavy layer in between. The flute is that corrugated medium, and its wave shape determines the board's performance characteristics.
The flute performs four distinct functions simultaneously:
- Compression strength — the arched shape of the corrugated medium resists vertical compression, allowing the board to bear stacking loads. Larger flutes with more arch height generally provide greater compression strength per unit of board
- Cushioning — the air pockets inside the flute absorb impact energy. More flutes per unit length (finer flute) means more contact points and more evenly distributed cushioning across the product surface
- Rigidity — the flute locks the two liner sheets apart, creating a stiff composite panel that resists bending. This rigidity is what allows a corrugated box to maintain its shape under load
- Printability — finer flutes (E) have a smoother surface that accepts offset printing with sharper detail and richer colour. Coarser flutes (B, C) have a slightly uneven surface that suits flexographic printing
E-Flute — the premium printing and retail packaging flute
E-flute has approximately 290 flutes per metre and a board thickness of around 1.5–2 mm. It is the finest of the standard corrugated profiles, almost flat in comparison to B or C flute, which is precisely what makes it valuable for specific applications.
E-flute strengths:
- Thinnest profile — flat-packs more compactly than any other flute, reducing storage space and shipping volume for the box itself before use
- Smoothest printing surface — accepts high-resolution offset printing with photographic-quality results, including fine text, gradients, and detailed product imagery
- High flat crush resistance — finer flute means more arch contact points per centimetre of board surface
- Excellent for die-cutting — produces clean, precise cuts on window openings, unusual shapes, and intricate closure mechanisms
- Premium unboxing feel — thinner wall, crisper fold lines, and a more rigid-yet-lightweight quality that reads as premium to customers
E-flute limitations:
- Less cushioning than B or C — the thinner air column between liner sheets absorbs less impact energy per unit of board thickness
- Lower BCT (compression strength) than B or C for the same liner paper weight — less suitable for stacking heavy products
- More vulnerable to board face puncture from sharp-edged products in transit
- Not suitable for products above approximately 2–3 kg or for long-distance courier routes where handling is rough
Best for: Retail gift boxes, subscription mailer boxes (self-locking style), premium D2C unboxing packaging, cosmetics and skincare outer cartons, jewellery boxes, electronics retail presentation packaging, mono carton replacements, and any application where offset print quality and compact profile are the primary requirements. E-flute is the corrugated board used in ASPV's Multicolored Printed Subscription Box with Inner Print and premium apparel mailers.
B-Flute — the universal shipping and protective flute
B-flute has approximately 150 flutes per metre and a board thickness of around 3–3.5 mm. It is the most widely used corrugated flute profile in the world for standard packaging and shipping applications — the flute that most businesses receive when they order "standard 3-ply corrugated" without specifying further.
B-flute strengths:
- Excellent puncture resistance — the intermediate flute profile resists sharp-edge penetration better than E-flute for the same liner weight
- Good printability — accepts both flexographic printing and, on white-top boards, offset printing
- Strong flat crush resistance — resists pressure applied across the board face
- Good BCT for standard stacking heights — more than adequate for most e-commerce and FMCG applications
- Standard for most corrugated manufacturers — widest availability, fastest lead times, and most competitive pricing
B-flute limitations:
- Less cushioning than C-flute for heavy or highly fragile items over long transit distances
- Lower BCT than C-flute under heavy vertical stacking load
- Not ideal for large boxes stacked 5+ high with products above 10 kg per box
Best for: Consumer goods packaging, auto parts and hardware, canned goods, printed shipper boxes, point-of-sale and POP displays, standard e-commerce courier boxes for products between 1–8 kg. B-flute is what most buyers in Delhi NCR receive when they order "standard 3-ply corrugated" from any manufacturer in Mangolpuri, Lawrence Road, Naraina, or Bawana industrial areas.
C-Flute — the heavy-duty standard flute
C-flute has approximately 130 flutes per metre and a board thickness of around 4–4.5 mm — the thickest of the three main single-wall flutes. Its larger arch profile provides greater cushioning and compression strength at the cost of a less smooth printing surface and greater board bulk in storage.
C-flute strengths:
- Best cushioning among standard single-wall flutes — larger air column between liner sheets absorbs more impact energy
- Highest BCT among single-wall options — suitable for heavier products and higher stacking requirements
- Better vibration damping — important for fragile items over long transit distances, including road freight to Tier 2 and Tier 3 cities
- Better suited for export — handles the mechanical stress of ocean freight container handling better than B-flute
C-flute limitations:
- Thickest single-wall profile — takes more space in flat-pack storage compared to E or B
- Less printable than E or B — coarser surface reduces fine print resolution
- Less puncture resistant than B-flute for the same liner weight
Best for: Glass bottles and jars, ceramics, fragile products over long distances, export master cartons, heavy industrial components, large appliances, and any application where maximum cushioning in a single-wall format is the priority. C-flute is widely used by manufacturers in Okhla, Patparganj, and Mohan Co-op industrial areas packaging heavy manufactured goods.
BC Double-Wall — when single-wall is not enough
BC double-wall corrugated combines a B-flute medium and a C-flute medium with three liner sheets — inner, middle, and outer. The total board thickness is approximately 6–7 mm. It is the highest-strength corrugated board available in standard production formats, and is what the Indian market means by "5-ply corrugated."
BC double-wall delivers substantially higher BCT than any single-wall configuration for the same box size, making it the correct specification for:
- Products above 15 kg per box
- Industrial machinery parts, heavy auto components, and engineering goods
- Export master cartons for ocean freight — where the box must survive container loading, sea voyage, and unloading handling
- Stacking 6 or more box layers high in a warehouse — where the BCT requirement exceeds what single-wall can reliably provide
- Cold chain applications where moisture reduces single-wall BCT significantly, requiring additional structural margin

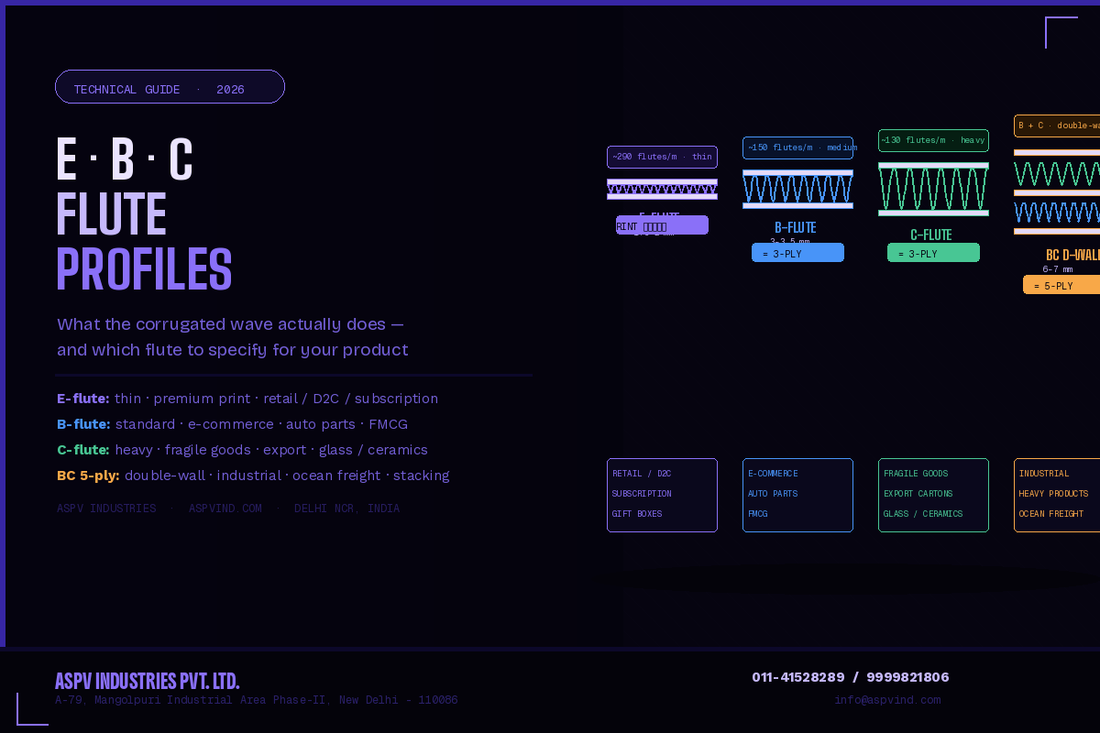

Flute comparison — all four profiles
| Property | E-Flute | B-Flute | C-Flute | BC Double-Wall |
|---|---|---|---|---|
| Thickness | 1.5–2 mm | 3–3.5 mm | 4–4.5 mm | 6–7 mm |
| Flutes per metre | ~290 | ~150 | ~130 | B+C combined |
| Print quality | ★★★★★ Best | ★★★★ Good | ★★★ Moderate | ★★★ Moderate |
| Cushioning | ★★ Low | ★★★★ Good | ★★★★★ Best | ★★★★★ Best |
| BCT / stack strength | ★★ Low | ★★★★ Good | ★★★★ High | ★★★★★ Highest |
| Die-cut precision | ★★★★★ Best | ★★★★ Good | ★★★ Moderate | ★★ Lower |
| Flat-pack storage | Excellent | Good | Moderate | Bulkier |
| Common name (India) | E-flute / premium 3-ply | Standard 3-ply | Heavy-duty 3-ply | 5-ply |
What do "3-ply" and "5-ply" actually mean in the Indian market?
In Indian corrugated trade, ply count and flute type are often used interchangeably in ways that cause specification confusion:
- "3-ply" refers to single-wall corrugated with one corrugated medium between two liner sheets. The specific flute — B or C — varies by manufacturer and application, and significantly affects the board's performance. Always specify the flute alongside the ply count
- "5-ply" refers to double-wall corrugated with two corrugated medium layers and three liner sheets. BC double-wall is the most common 5-ply configuration. This is substantially stronger than any 3-ply option
- "E-flute 3-ply" is a specific single-wall board using E-flute medium — used for premium printed packaging, not standard shipping cartons
- The correct practice when ordering: specify both the ply count and the flute type — "3-ply B-flute" for standard shipping, "3-ply E-flute" for printed retail boxes, "5-ply BC double-wall" for heavy-duty applications
Quick flute selection guide
Specify E-flute when: the box will be high-quality offset printed; you need a premium retail or unboxing feel; the product is lightweight (under 2–3 kg); it is a subscription mailer, gift box, cosmetics outer, or apparel mailer; window cuts or intricate die-cuts are required.
Specify B-flute when: standard e-commerce or courier dispatch; the product is 1–8 kg and not highly fragile; cost efficiency matters alongside adequate protection; for auto parts, hardware, canned goods, general goods, and POP displays.
Specify C-flute when: the product is fragile and needs maximum cushioning; the product includes glass, ceramics, or other fragile items; long-distance transit or export routes are involved; the product is above 8 kg; warehouse stacking is intensive.
Specify BC double-wall when: products above 15 kg per box; industrial machinery, heavy auto components, or engineering goods; export master cartons for ocean freight; stacking 6 or more layers high is routine; cold chain applications where moisture degrades single-wall BCT significantly.
The bottom line
Flute profile is not a minor technical detail — it determines the print quality your box can achieve, the cushioning it delivers, and the compression load it can bear. Specifying "corrugated box" without specifying flute type is like specifying "tyres" without specifying the load rating. The right flute for the right application costs the same as the wrong flute — but performs completely differently in the supply chain it was designed for.
ASPV Industries manufactures corrugated boxes in E-flute, B-flute, C-flute, and BC double-wall — in both 3-ply and 5-ply configurations, standard and custom sizes, plain and fully printed. We supply businesses across Delhi NCR — from Mangolpuri and Lawrence Road to Okhla, Bawana, Narela, and Wazirpur — and deliver PAN India. Discuss your product weight, transit route, stacking height, and print requirement, and we will specify the correct flute for your application.
Call us at 011-41528289 / 9999821806 or visit aspvind.com.
Frequently Asked Questions
Is E-flute stronger than B-flute?
Not in compression or cushioning — B-flute has higher BCT (stacking strength) and more cushioning capacity than E-flute for the same liner paper weight. E-flute's advantage is in flat crush resistance and printability, not compression performance. If your primary concern is protecting a product through courier transit or warehouse stacking, B-flute is the stronger choice. If your primary concern is print quality and precise die-cutting on a lightweight product, E-flute is better suited.
What flute is used in ASPV's subscription and printed mailer boxes?
ASPV's premium printed subscription boxes and self-locking mailer formats are manufactured on E-flute corrugated board. E-flute's thin profile, smooth printing surface, and precise fold lines make it the standard choice for high-quality offset-printed packaging — including the Multicolored Printed Subscription Box with Inner Print and the Multicolored Printed Apparel Box with Inner Print. For standard shipping and protective corrugated boxes, B-flute (3-ply) and BC double-wall (5-ply) are used.
Can E-flute corrugated be used for courier dispatch, or only for retail packaging?
E-flute can be used for courier dispatch of lightweight products — typically under 2 kg — where the primary requirements are brand presentation and compact packaging rather than heavy-duty impact protection. Many D2C brands use E-flute self-locking mailers successfully for clothing, cosmetics, jewellery (with inner foam protection), and stationery. For products above 2 kg or with fragility requiring significant cushioning, B-flute or C-flute outer packaging provides more reliable transit protection.
Why do printed corrugated boxes look better than standard corrugated even with the same design?
Two reasons: board type and print process. Printed corrugated boxes use white-top board (white kraftliner) rather than brown kraft, which allows CMYK colours to appear vivid rather than muted by the brown base tone. And E-flute board's smooth surface accepts offset printing with far finer dot resolution than B or C flute's coarser surface. The combination of white board and E-flute medium produces the print quality most businesses associate with premium retail packaging.
Can I use the same box design in different flutes for different sales channels?
Yes — many brands run the same box design on different flute specifications for different channels. A skincare brand might use E-flute printed mailers for D2C orders where print quality matters, and B-flute plain corrugated for wholesale B2B dispatch where cost efficiency is the priority. ASPV Industries can produce both specifications in the same dimensions, allowing channel switching without changing the packing workflow.
