Offset vs Flexographic Printing — Choosing the Right Print Process for Your Packaging
Two boxes can carry the same design and cost noticeably different amounts to print, purely based on which printing process produced them. Offset and flexographic printing are the two dominant processes in corrugated and paper packaging, and they're built for genuinely different jobs — one optimises for print detail and colour accuracy, the other for speed and cost at high volume on textured surfaces. Choosing between them isn't about which is "better," but which fits the specific job.
This guide explains how each process actually works, where each one wins, and how to decide which is right for a given packaging project.
At a Glance

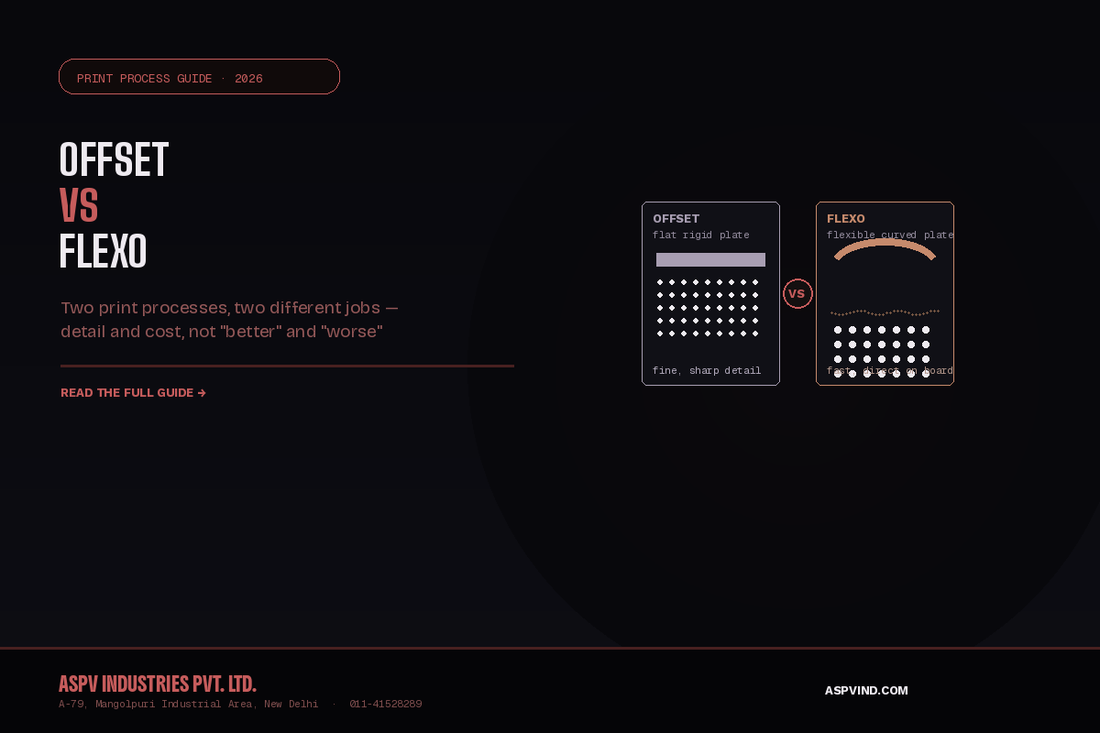

Offset printing uses rigid metal plates and a flat sheet-fed process, delivering the highest print resolution and colour accuracy — best suited to smooth board surfaces like mono cartons and retail packaging where fine detail matters. Flexographic printing uses flexible rubber or polymer plates on a rotary press, printing directly and efficiently on corrugated surfaces at high speed — the standard for most shipping cartons and high-volume production runs.
How does offset printing actually work?
Offset printing transfers an image from a rigid printing plate onto a rubber "blanket," which then transfers (or "offsets") the image onto the paper or board surface. Key characteristics that follow from this process:
- Highest print resolution — the indirect blanket transfer produces very fine dot detail, sharp text, and smooth colour gradients
- Requires a flat, smooth substrate — offset printing is done on flat sheets before die-cutting and folding, meaning it works on smooth paperboard and pre-laminated corrugated liners, not directly on a fluted corrugated surface
- Higher setup cost, better suited to larger runs where quality matters — plate-making and press setup carry a fixed cost that's spread more efficiently over larger production quantities
- Standard for retail-facing packaging — mono cartons, rigid boxes, and printed liner sheets used in high-quality corrugated boxes rely on offset printing for their sharp, vivid graphics
How does flexographic printing actually work?
Flexographic printing uses a flexible printing plate wrapped around a rotating cylinder, pressing ink directly onto the packaging surface as it passes through the press at speed. Key characteristics:
- Prints directly on corrugated surfaces — the flexible plate can conform to the slightly uneven texture of corrugated board, printing directly on the box after it's formed, rather than requiring a separate flat liner sheet
- Faster production speed — the rotary, continuous-feed process moves significantly faster than sheet-fed offset, making it efficient for high-volume runs
- Lower cost at volume for standard designs — plate costs are generally lower than offset plates, and the process economics favour large production runs of simpler designs
- Standard for most shipping cartons — the majority of plain and moderately branded corrugated shipping boxes worldwide are printed flexographically
- Slightly lower fine-detail resolution — small text, fine gradients, and photographic-quality imagery are harder to reproduce with the same sharpness as offset
Offset vs flexo — side-by-side comparison
| Factor | Offset | Flexographic |
|---|---|---|
| Print resolution | Highest | Good, less fine detail |
| Direct on corrugated? | No — needs flat liner or board | Yes — prints direct |
| Production speed | Moderate | Fast |
| Best fit | Retail cartons, rigid boxes, premium print | Shipping cartons, high-volume standard runs |
| Cost efficiency profile | Better at moderate-to-large runs needing quality | Better at large runs of simpler designs |
How do you decide which process fits your project?
- If the box is customer-facing retail packaging with photographic imagery, fine text, or precise colour matching — offset is generally the right choice
- If the box is a shipping carton where the design is mainly a logo, simple graphics, and handling instructions — flexographic printing is generally the more cost-efficient choice
- If production volume is very high and the design is straightforward — flexographic's speed and lower per-unit cost at scale typically wins
- If the packaging needs a premium unboxing presentation with sharp graphics — offset printing on a white-top liner, often combined with lamination, delivers that result
- When uncertain, ask your manufacturer to show physical print samples of both processes on your specific board type — this settles the question faster than any written comparison
The bottom line
Neither printing process is universally better — they're built for different jobs, and the packaging that looks and performs best is the one printed with the process actually suited to its purpose. A shipping carton doesn't need offset's fine detail, and a retail-facing mono carton rarely looks its best printed flexographically. Understanding this distinction helps a buyer ask the right question of a manufacturer, rather than simply requesting "good quality printing" without knowing what determines it.
The right process is the one matched to what the box actually needs to communicate and how many units need to be produced — not a fixed hierarchy of "better" and "worse."
Frequently Asked Questions
Can flexographic printing achieve photographic-quality images at all?
Modern flexographic technology has improved significantly and can reproduce reasonably detailed images, especially with newer plate and press technology. However, for genuinely photographic-quality reproduction with fine gradients and sharp small text, offset printing still generally produces a visibly cleaner result. The gap has narrowed over time but hasn't closed entirely, particularly on the textured surface of corrugated board itself.
Why do premium printed corrugated boxes still look sharp if flexo can't do fine detail well?
Premium printed corrugated boxes commonly use offset printing on a separate liner sheet, which is then laminated onto the corrugated board before the box is die-cut and formed. This combines the compression and cushioning benefits of corrugated fluting with the print quality of offset — it's a hybrid approach specifically to get both attributes rather than a limitation of either single process.
Is one process significantly more expensive than the other overall?
Cost comparison depends heavily on run size and design complexity rather than one process simply costing more. Offset generally has higher setup costs (plate-making) that are better absorbed by larger orders, while flexo's setup is typically less costly but per-unit savings only fully materialise at higher volumes. For very small runs, the cost difference may be less significant than for large production quantities, where the underlying process economics diverge more clearly.
Do both processes work with the same ink and colour standards?
Both processes can work with standard colour matching systems, but achieving an exact colour match across both processes for the same brand palette requires careful calibration, since the ink formulations, application methods, and substrate interactions differ between offset and flexo. If a brand uses both processes across different packaging formats, requesting colour proofing on each specific process and substrate combination helps ensure consistent brand colour appears the same regardless of which process produced a given piece of packaging.
How do I know which process my current packaging manufacturer uses?
Ask directly — a manufacturer should be able to confirm which printing process they use for a given product, and many offer both processes depending on the specific packaging format and order requirements. If print quality on a current product isn't meeting expectations, understanding which process was used is a useful starting point for the conversation about whether a different process (or a hybrid liner-lamination approach) would better serve the specific design and quality requirements.
